Two high-quality buffers.

First buffer is based on Discrete Class-A

Second buffer is based on Low-Noise Op-Amp



  Prevents the loss of signal level, high frequency and low end punch

that is caused by impedance mismatch and cable capacitance



  Some Fuzz or Wah pedals don¡¯t like to be fed with a buffered signal.

For this reason, the first buffer can to be bypassed.



  You can avoid Ground Hum/Noise that may occur when two buffers

are used for different signal routing, because the second buffer is

supplied with fully isolated power.

  Powered by 9VDC(center negative) 45mA

  Dimensions : 72(W) x 113(D) x 31(H) mm

2.9(W) x 4.5(D) x 1.2(H) inches

  Weight : 180 g / 0.4 lb





  Hi-Res Pictures

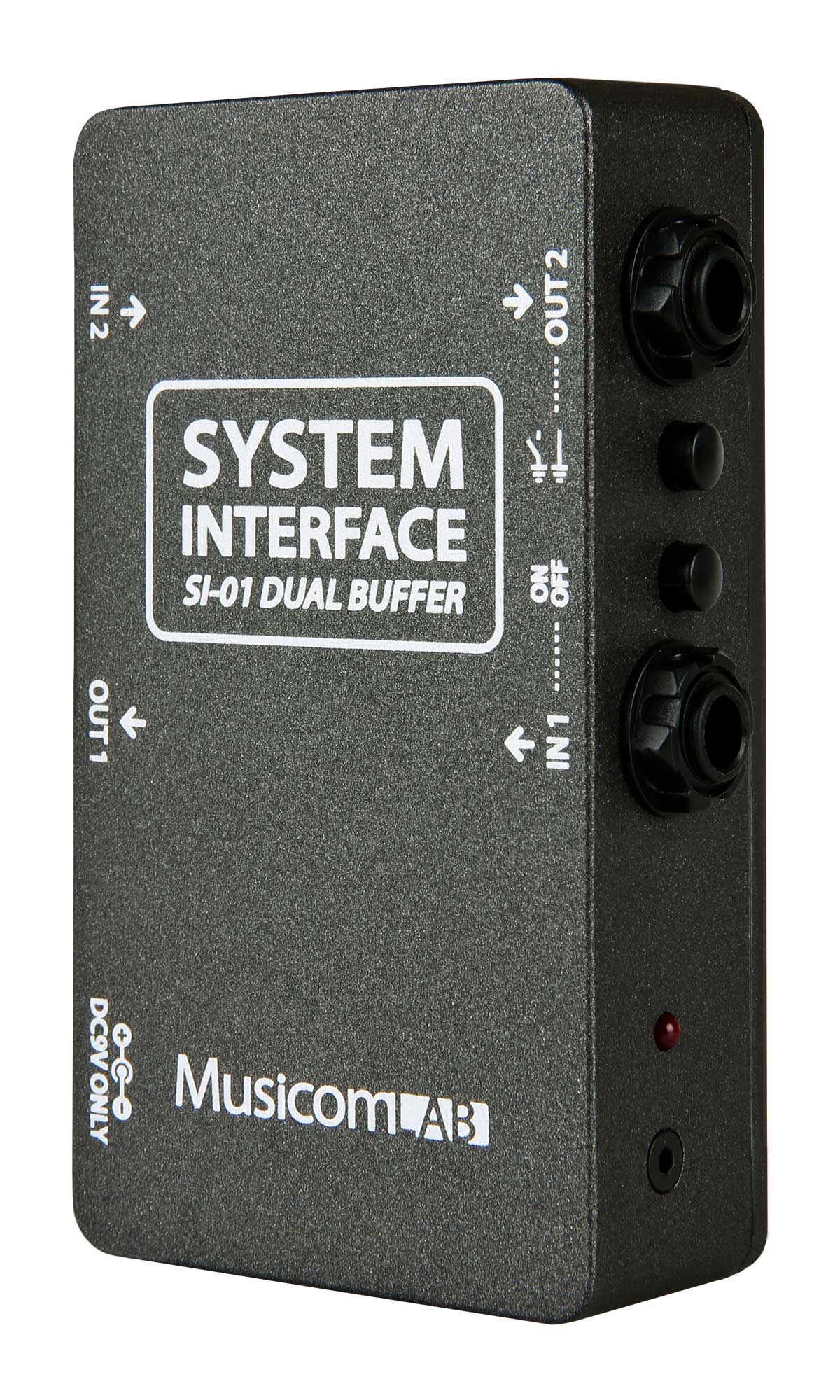

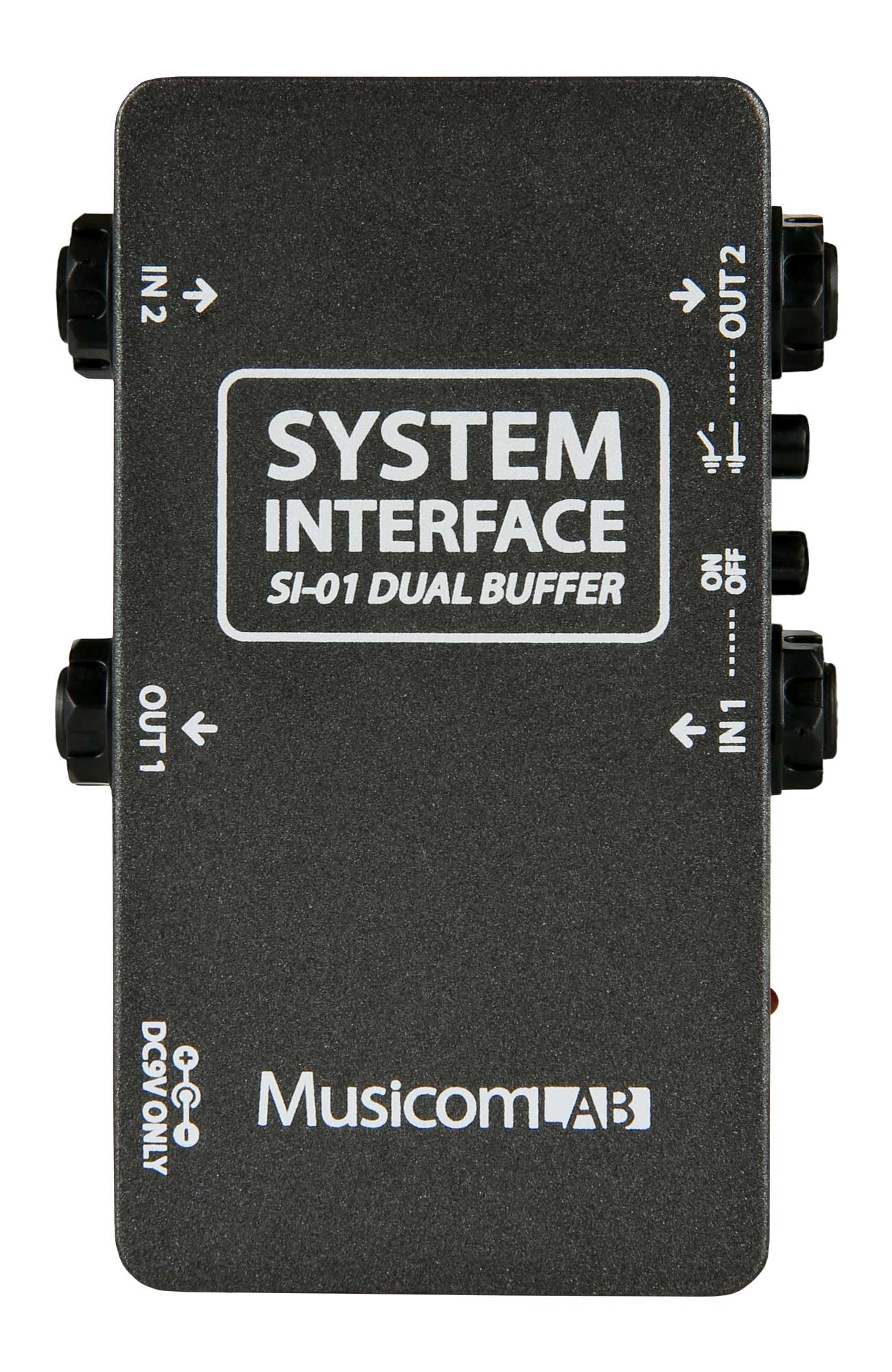

Picture1  Picture2



  Manual

SYSTEM INTERFACE Manual (English)

SYSTEM INTERFACE Manual (Korean)
