10 mono loops

  Programmable loop order each preset

 One of 2 inputs is selectable using TRS jack

  Output L/R are capable using TRS jack

  Loop5/6, Loop7/8 and Loop9/10 are capable using TRS jacks

  Up to 2 loops can be assigned to Carry-over between presets

  801 preset memory locations

   (200 banks of 4 presets, plus a Global Preset)

  Create up to 800 songs

  Organized the 800 songs in to 64 sets of 120 songs

  4 function switches via 2 TRS jacks

   (Latched / Momentary / Tempo Sync)

  Flexible switch setting

  Click-Less functions

  16 MIDI messages (PC, CC, Note or SysEx) each preset

  8 MIDI messages (PC, CC, Note or SysEx) each switch

  8 Audio actions each IA switch

  MIDI Time Clock or Analog Tempo out for TAP-TEMPO

  One expression pedal or 2 foot-switches (XPDL)

  USB Connection to a PC or MAC

  Graphic LCD for to show a lot of information

  Easily copy presets, banks, songs and sets

  Easily name presets, songs, sets, pages and switches

  Heavy-duty footswitches

  Powered by 9VDC(center negative) 250mA

  Dimensions : 263(W) x 110(D) x 68(H) mm

10.4(W) x 4.3(D) x 2.7(H) inches

  Weight : 1,000 g / 2.2 lbs

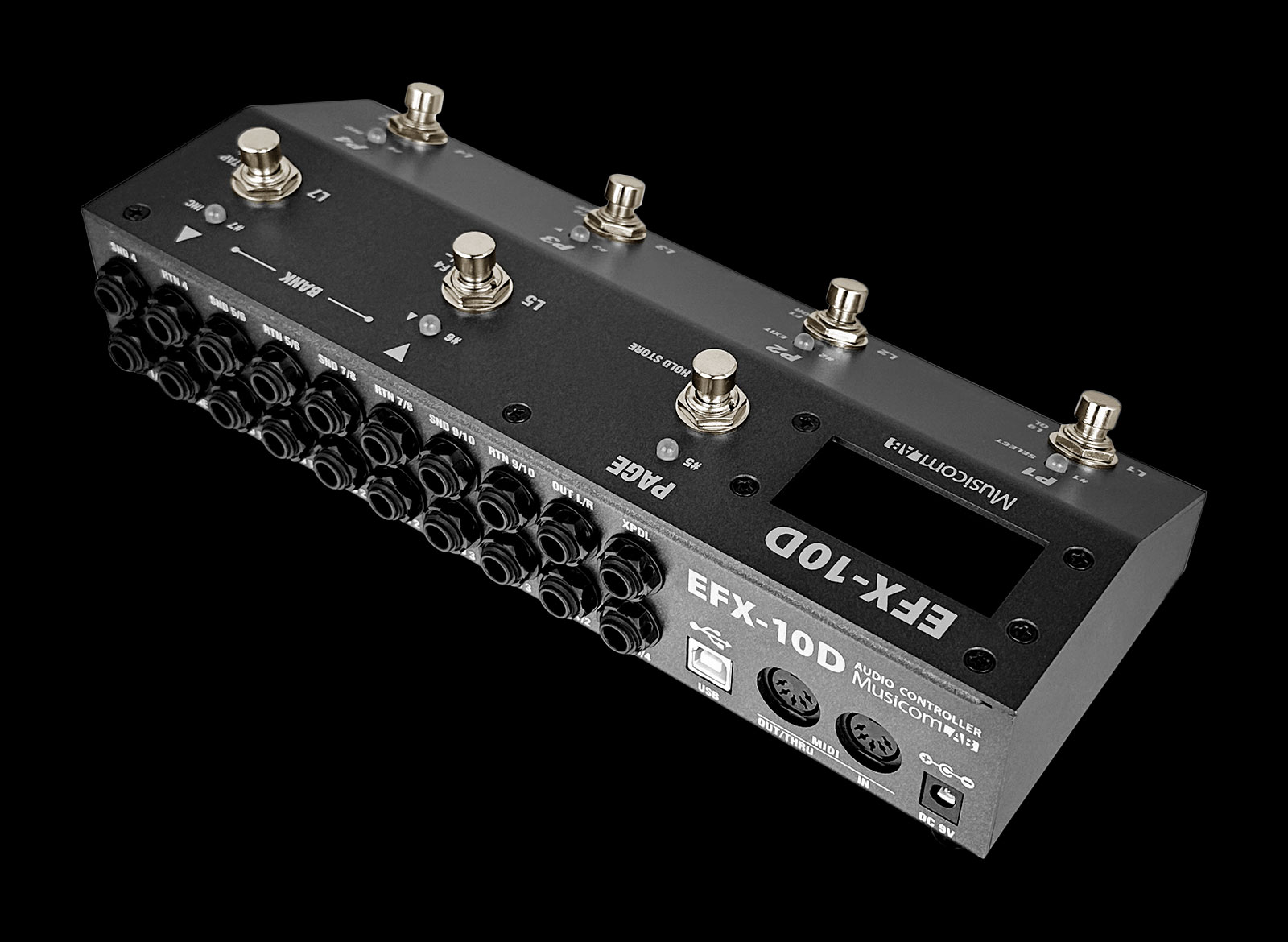

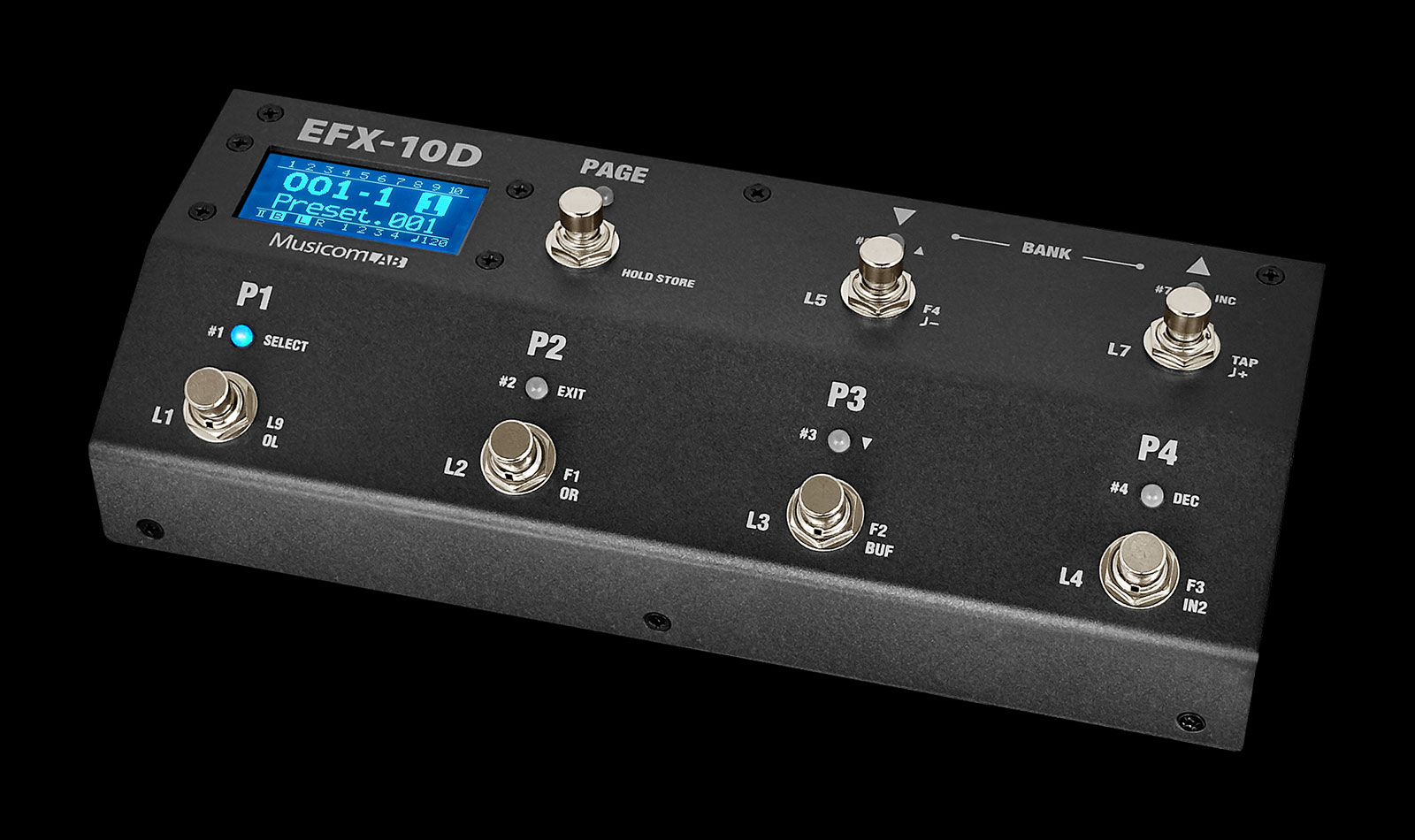

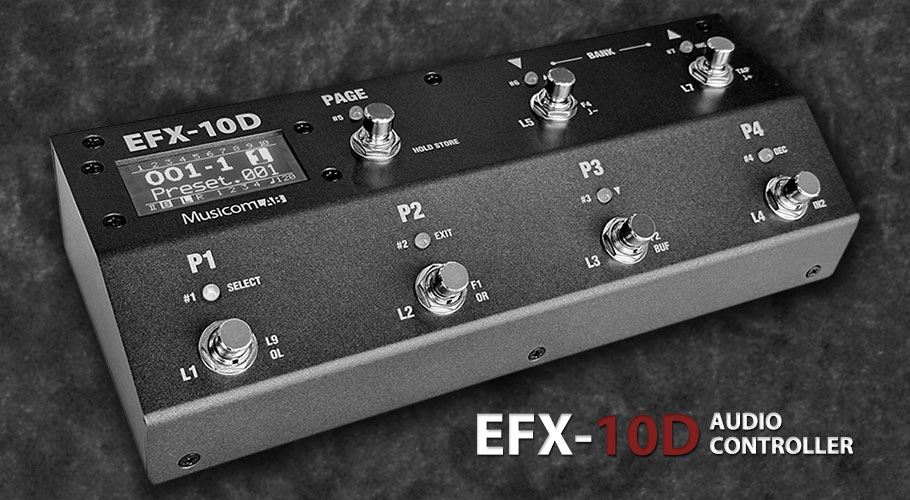

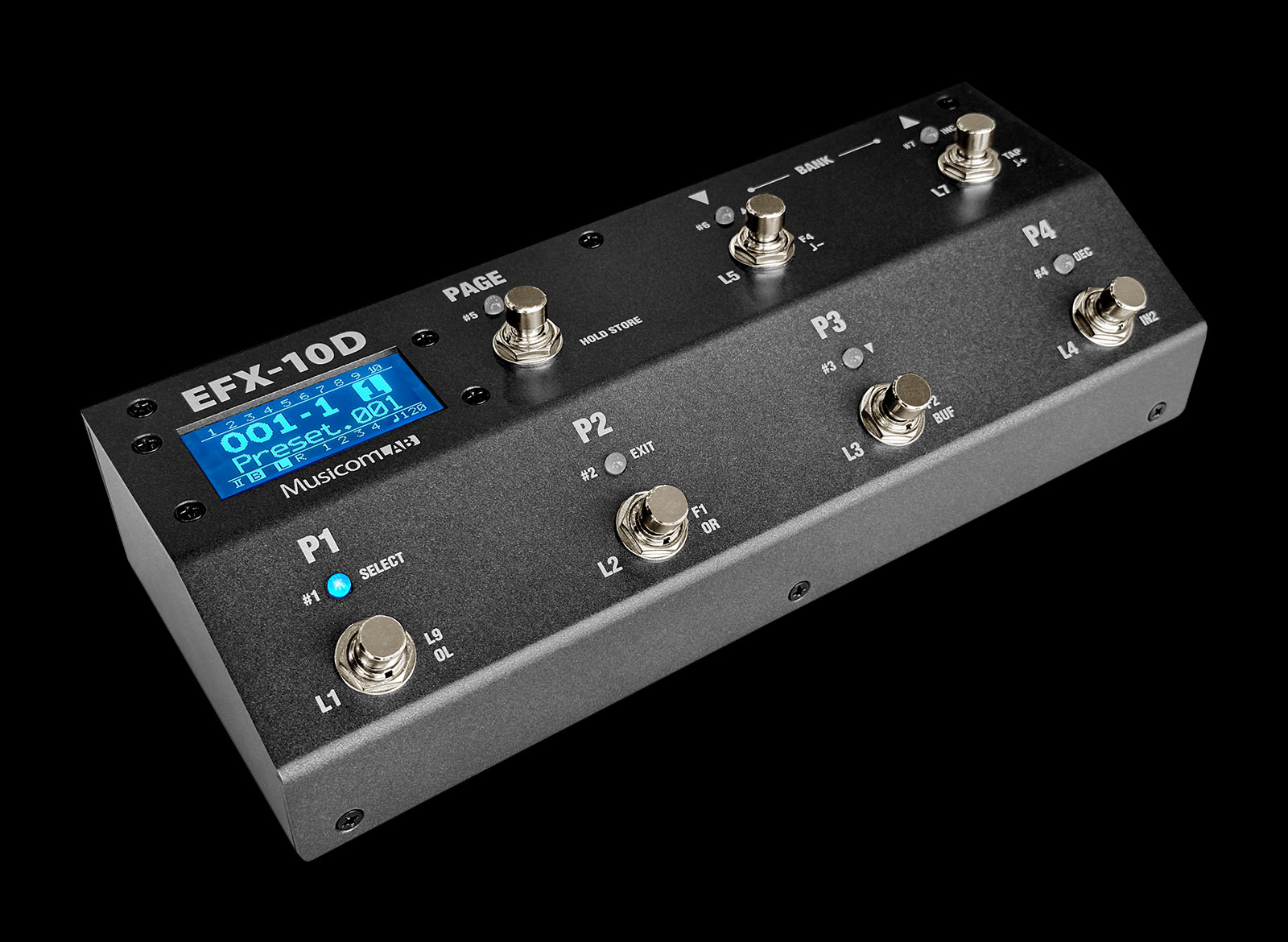

  Hi-Res Pictures

Picture1  Picture2  Picture3  Picture4





  Manual

EFX-10D Manual (English, version 1.0x)

EFX-10D Manual (Korean, version 1.0x)





  Latest Firmware

EFX-10D Firmware v1.01 (16-MAY-2024)

You can update new firmware using the EFX-10D editor.





  EFX-10D Editor

EFX-10D Editor v1.02 (Windows, 17-MAY-2024)

EFX-10D Editor v1.02 (macOS, 17-MAY-2024)
