Each output is isolated by hybrid DC transformer.

  Ultra-low noise outputs.

   Vintage pedals based on transistors are also available.

  Six of the outputs deliver up to 500mA at 9V.

  Two of the outputs are variable voltage(9V/12V/18V).

  Super slim design easily mounts under any pedalboard.

  Powers from included AC adapter(12VDC/2A).

  Dimensions : 205(W) x 55(D) x 27(H) mm

8.1(W) x 2.2(D) x 1.1(H) inches

  Weight : 240 g / 0.53 lb

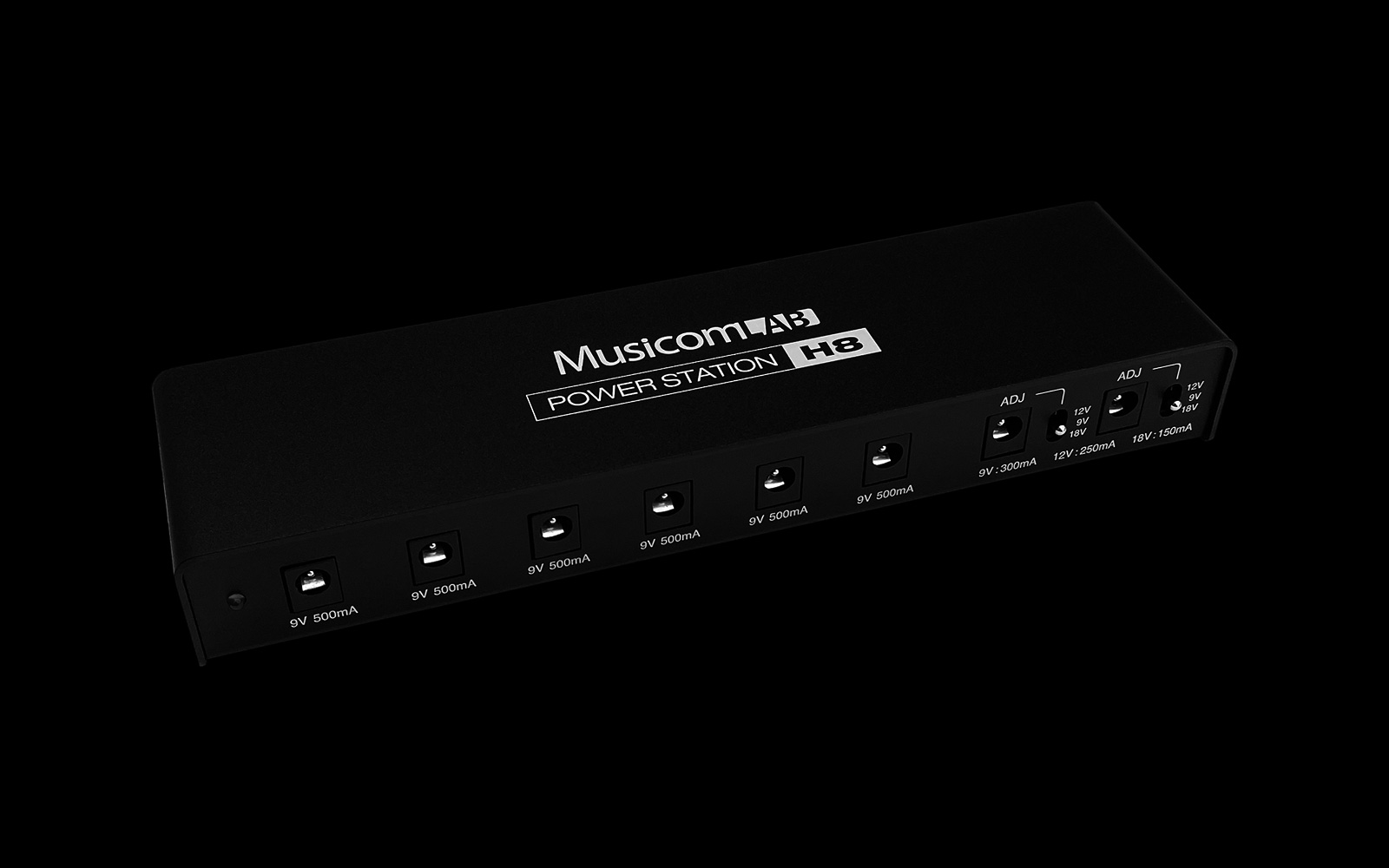

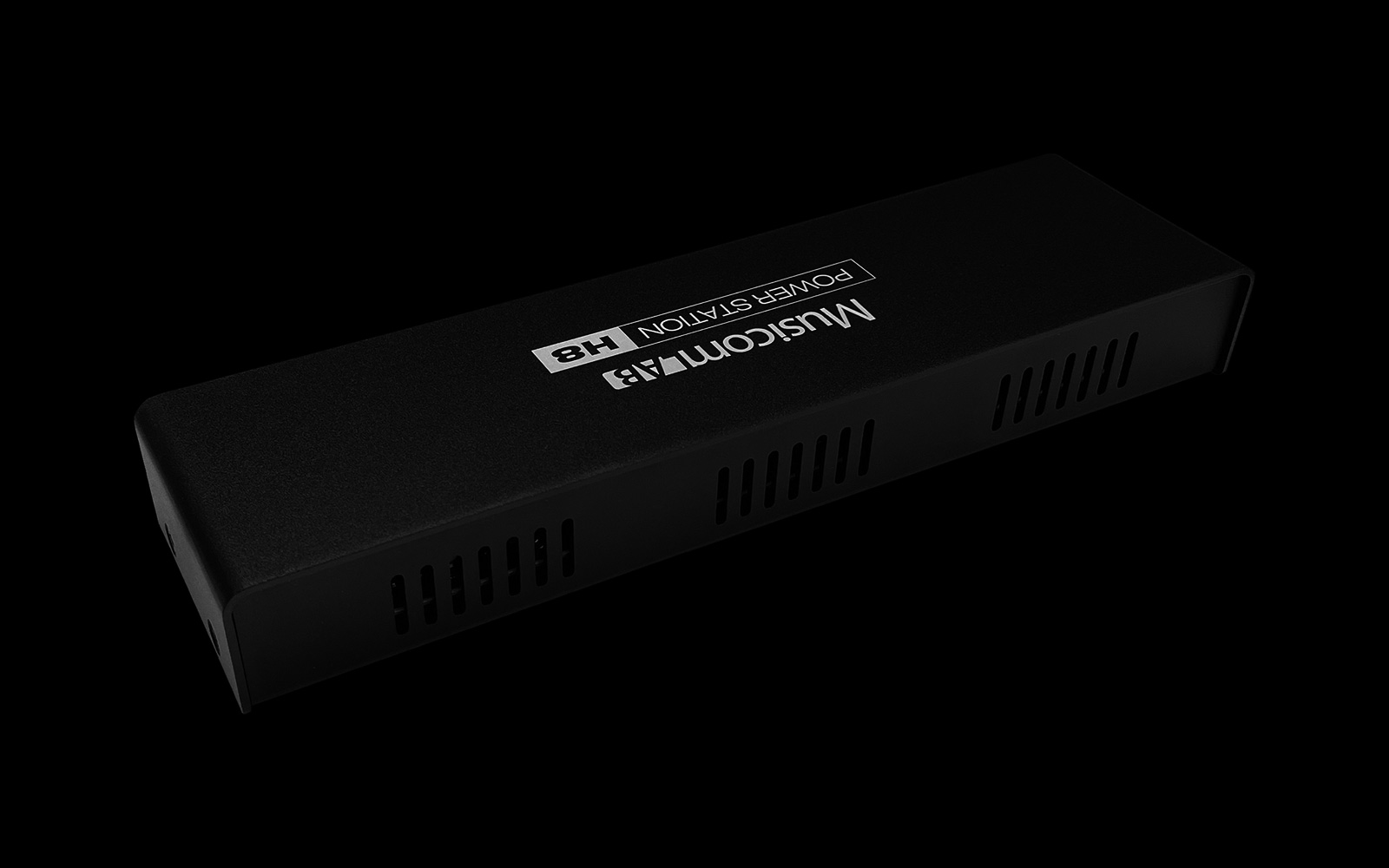

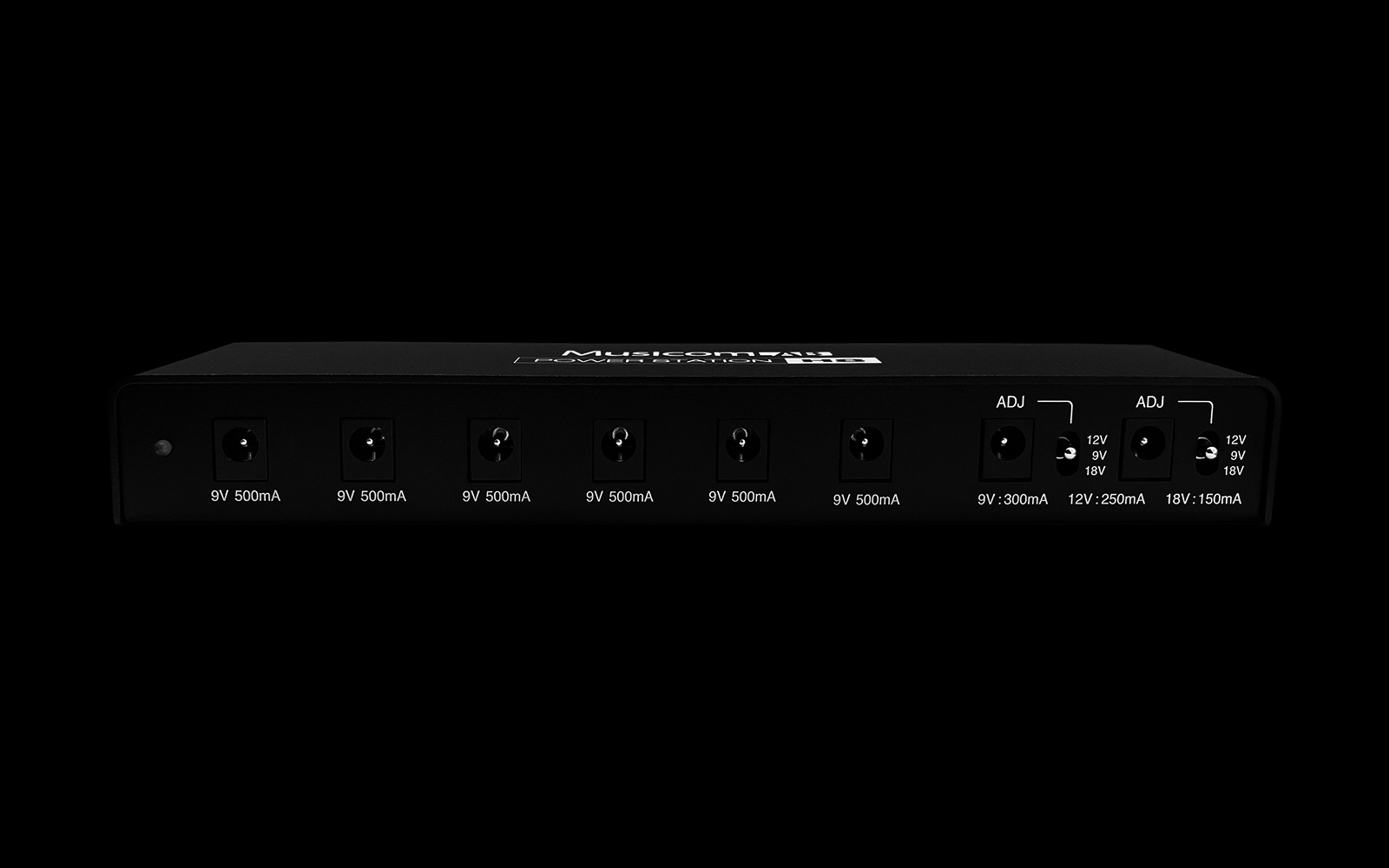

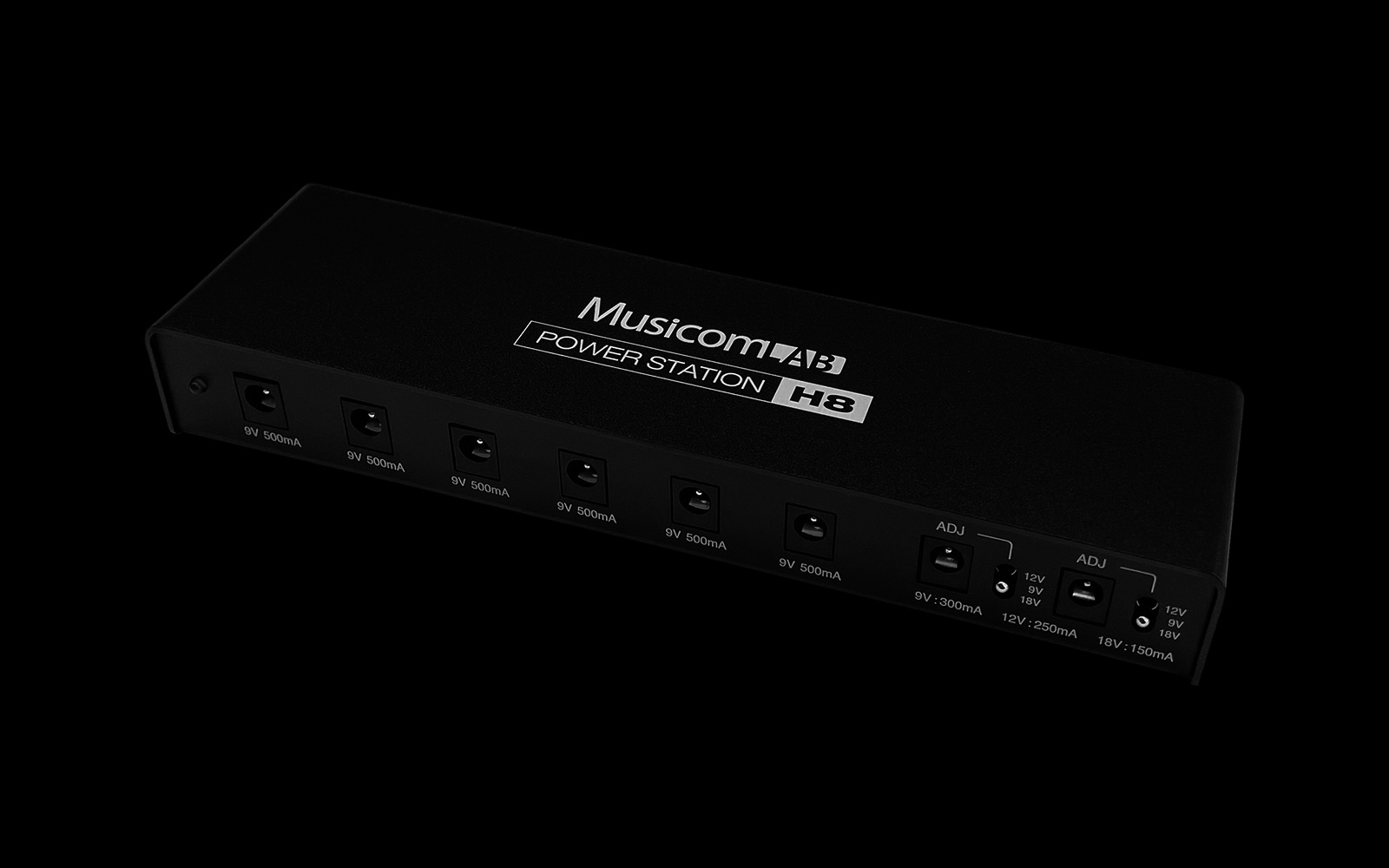

  Hi-Res Pictures

Picture1  Picture2  Picture3  Picture4





  Manual

PowerStation H8 Manual (English)

PowerStation H8 Manual (Korean)
